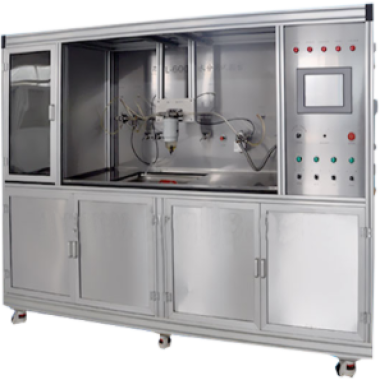

Fuel Water Separation Efficiency Test Rig(ISO/TS 16332)

This test stand is mainly used for testing various types and sizes of fuel filters and modules according to ISO/TS 16332 for their ability to separate either finely or coarsely dispersed undissolved water out of fuel. This standard specifies a fuel/water separation test with continuous water injection using an online water concentration method.

The test stand is automatically controlled by a computer which saves the measured data in chronological order; the flow chart and test parameters are displayed on the screen. Data handling and generation of reports according to ISO/TS 16332 standard are included.

Applicable Standards:

(1)ISO/ TS 16332-2006 Diesel engine diesel filters Fuel Water Separation Efficiency Assessment Method.

(2) ISO 4020-2001 Test Methods for Fuel Filters for Road Vehicles - Diesel Engines.

Oil-water separation test apparatus: Oil-water separation test bench (hereinafter referred to as the test bench) mainly refers to ISO/ TS 16332-2006. Measurement of oil-water separation characteristics;

Implementation of ISO4020-2001. Cleanliness test for fuel filters. It shows the main techniques of the test, system pressure, differential pressure of the orifice device, differential pressure of the test piece and medium temperature.

Test items: Fuel filter oil-water separation performance Fuel filter cleanliness test.

Application:

Development of new products.

Comparison of performance data with foreign products.

Product quality control.

Third-party testing and supervisory organizations.

Technical parameters:

Features:

The test bench can automatically collect the main performance and technical parameters. Flow adjustment is controlled by frequency converter.

The test bench is equipped with various load protections, including hydraulic protection and electrical protection (leakage protection, overload protection, emergency stop).

The shell of the test bench is made of aluminum alloy, the panel is made of stainless steel, the word is made of wax, and the connecting pipeline is made of seamless stainless steel pipe.

Note: The above parameters can be designed and manufactured according to different requirements of customers.

Applicable tests：

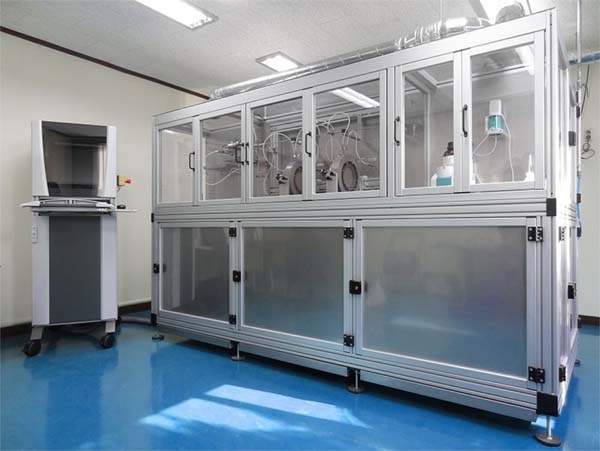

The test stand is designed as a Fuel Water Separation Efficiency Test Stand acc. ISO/TS 16332 as a part of the filter manufacturing and quality monitoring center.

Following tests can be performed with the test stand:

determination of differential pressure characteristics of a filter element

test for water/fuel separation efficiency

This test stand can be also configured and quoted according to your individual specifications.
