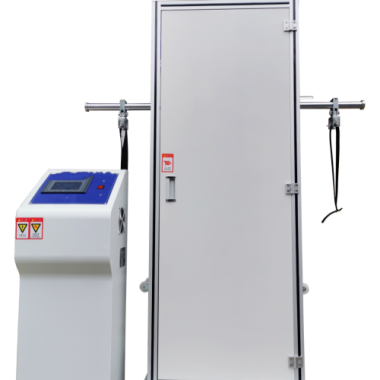

Luggage lifting and unloading testing machine

The luggage simulation lifting and unloading tester is a measuring instrument for the life of the handle of the luggage carrier. It is one of the important equipment for testing the performance and quality of luggage products. Product data can be used as a standard reference for judging the performance of luggage and can be used as an important basis for buyers to select bags.

Application

1.Handle strength test: Simulates repetitive impact under carrying conditions to detect the risk of stitching failure.

2.Overall structure test: Verifies the deformation of the case frame through cyclic testing to optimize material selection and structural design.

3.Component durability test: Evaluates the reliability of key components such as the pull rod and wheels during long-term use.

Standards

QB/T 1586.3：Hardware fitting of case and bag - Case-handle

Features

Made of high-quality cold-rolled steel plate with high-temperature baking paint treatment, it is aesthetically pleasing and easy to clean and maintain.

It uses a variable frequency motor drive, ensuring stable running speed, low noise, and high stability.

The sample fixture is made of imported aluminum profiles, which are lightweight, have a smooth surface, and are rust-proof.

The equipment features an imported silk-screened panel with silicone buttons, providing sensitive operation and durability.

It uses a color touchscreen for operation and display.

Technical Parameters

Accessoriess

1. Drive System

The system uses a motor drive to achieve reciprocating motion through a crank-connecting rod or telescopic cylinder mechanism. The stroke adjustment accuracy is ±1mm, ensuring the stability of the lifting and lowering movements.

2. Vibration Mechanism

It consists of a sleeve, a movable shaft, and a compression spring. Some models utilize a patented T-shaped slider and groove structure to reduce friction loss and improve testing efficiency.

3. Clamping Device

Equipped with adjustable left/right clamping hooks, it features an automatic locking function through a locking plate and a clamping plate, supporting the secure fastening of bags of different sizes and ensuring that the test specimen does not fall off during testing.

4. Control and Display System

Touchscreen controller: Integrates functions for setting test speed, number of cycles, load, and other parameters, and supports real-time data monitoring and storage.

LCD digital counter: High-precision display of the number of test cycles, with an error of ≤±1 cycle.

Safety protection: Photoelectric sensors monitor the specimen status in real time, and the machine automatically stops in case of detachment, preventing equipment damage.

Test Procedures

1. Specimen fixation

Secure the bag to a special fixture, ensuring the handle is in its natural lifting and lowering position.

2. Parameter setting

Input the lifting and lowering stroke, speed, number of cycles, and load value via the touchscreen.

3. Test initiation

The equipment automatically runs according to the set parameters, subjecting the handle to reciprocating impact.

4. Result evaluation

After the test is completed, check the handle and bag body for cracks, deformation, loose parts, etc., and evaluate their durability.
